Convoy S8 XML2 500 Lumen -

Convoy S8 XML2 là đèn pin tác chiến mini, đèn được sử dụng chip Cree XML2 với độ sáng tối đa 500lm

Thông Số Kỹ Thuật Convoy S8 XML2:

PARAMETER

Material: Aluminum Alloy

Low voltage warning: Yes

Reverse polarity protection: Yes

Lens type: Glass

Reflector: Orange peel

Mode memory: Yes

Tailstand: Yes

Battery included: No

Required battery type: 18650 lithium (protected or unprotected)

Required battery quantity: 1pcs

Height: 123.5mm

Width: 24.2mm

Weight: 77g

Quick Details

Flashlight Type:Tactical Flashlight

Place of Origin:Guangdong, China

Brand Name:Convoy

Model Number:S8 / SR-FL009

Battery Type:1×18650

Usage:Emergency

Power Source:Rechargeable Battery

Lighting Period (h):4

Certification:ce, FCC, RoHS

IP Rating:IP54

Lamp Body Material:Aluminum Alloy

Warranty(Year):1-year

Light Source:LED

Brand:Convoy

Mode:S8

Emitters:C-ree XML2

Emitters Quantity:1

Feature:Lightweight
Switch Location:Tail Cap

Material:Aluminum Alloy

Low voltage warning:Yes

Reverse polarity protection:Yes

Reflector:Orange peel

Packaging & Delivery Convoy S8 XML2

Selling Units:Single item

Single package size:15X6X6 cm

Single gross weight:0.180 kg

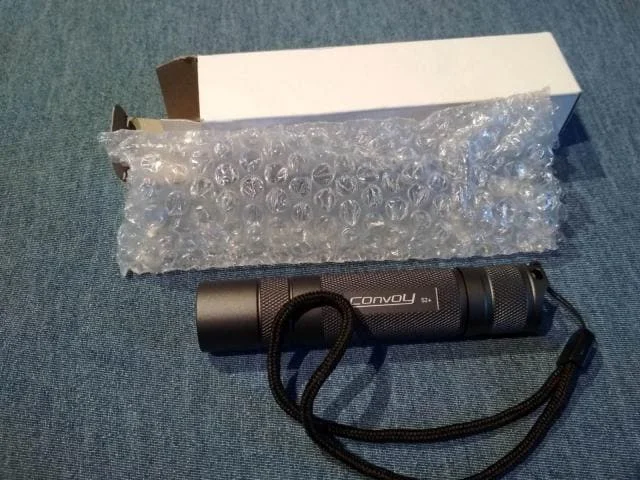

Package Type:: Package Contents:
* 1 x LED Flashlight
* 1 x white box package

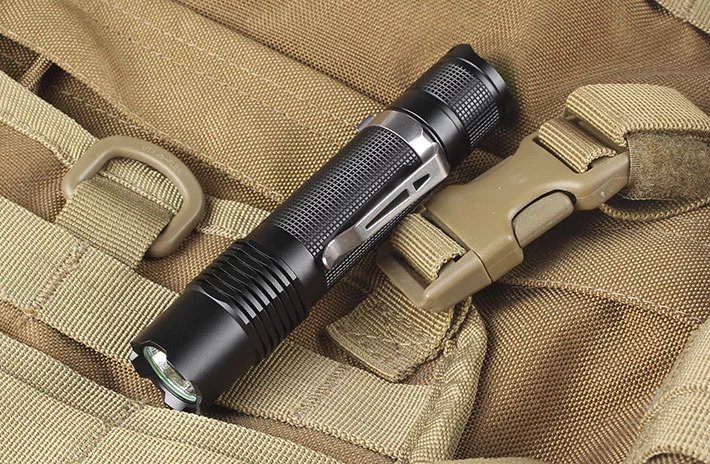

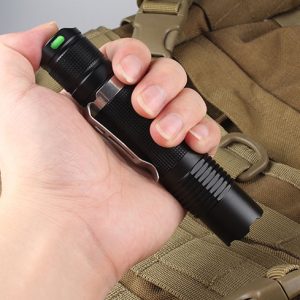

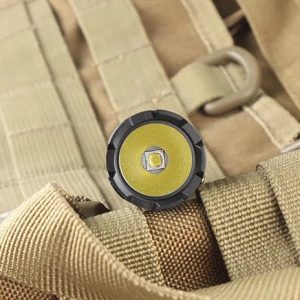

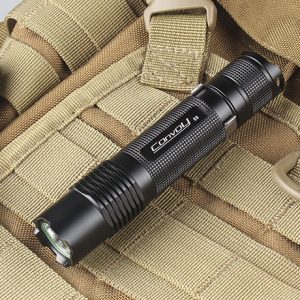

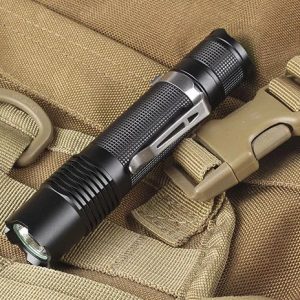

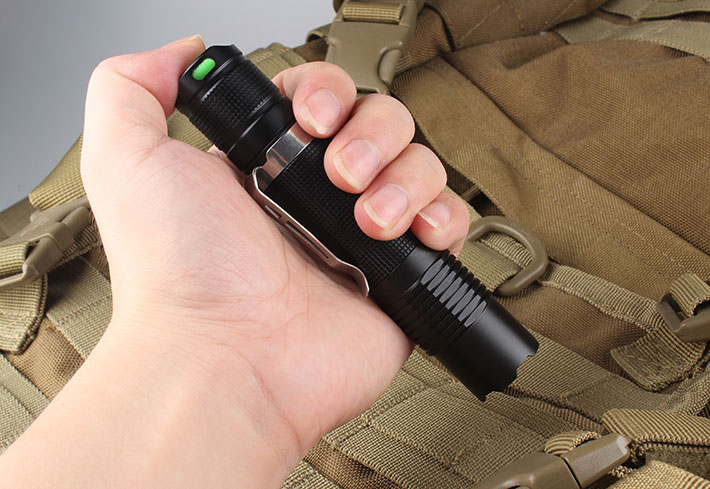

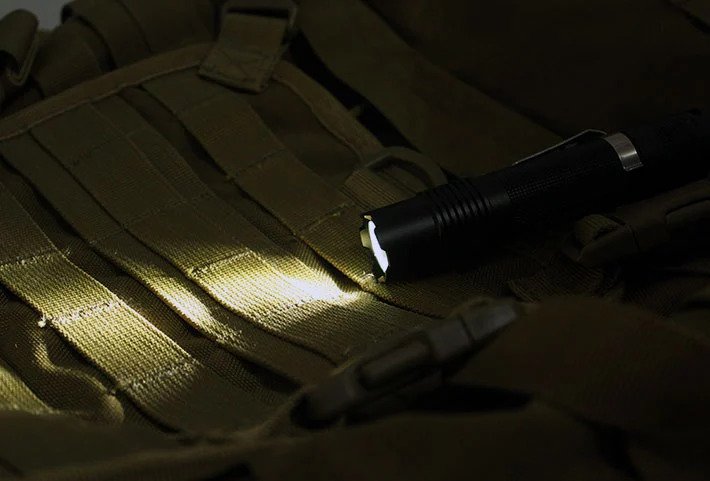

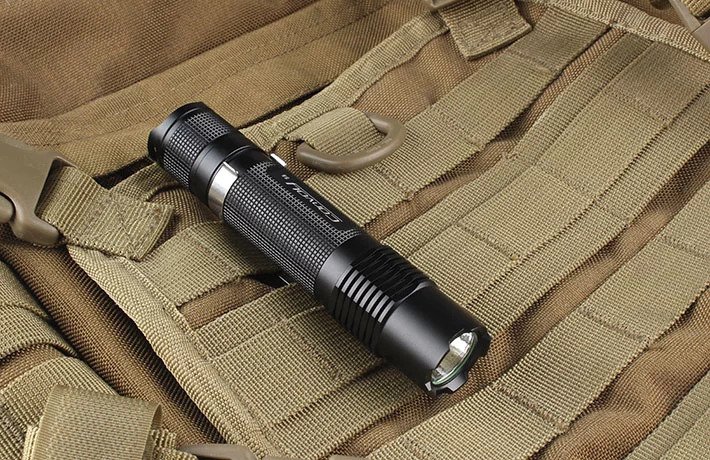

Picture Example:

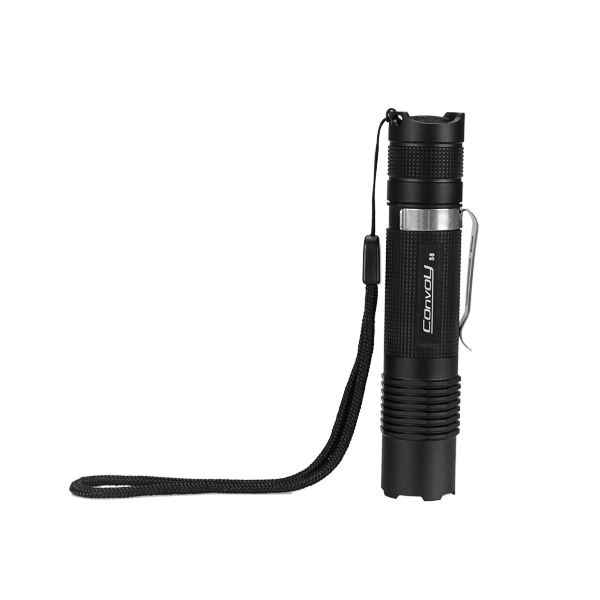

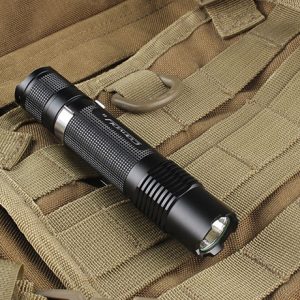

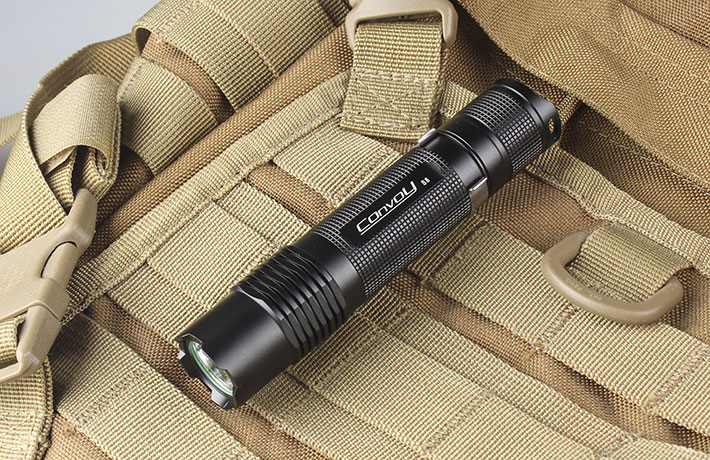

Convoy S8 XML2 LED Mini EDC Flashlight LED Tactical Torch with Pocket Clip

How to change the mode group:
choose the low mode ,wait about 5 seconds ,when you see flashing ,turn off your flashlight.then turn it on , you can switch to 3mode group or 5mode group.

Modes customization:

Default mode 2groups

Group 1 (3-Mode): 5% > 40% > 100%; Group 2 (5-Mode): 5% > 40% > 100%> Strobe> SOS

You can select other modes,there are several kinds of choice(only one group):

(mode option 1)5%low—30%mid—100%high—SOS—strobe

(mode option 2)5%low—30%mid—100%high

(mode option 3)10%low—100%high

(mode option 4)10%low—100%high–strobe

Flashlight protection function explanation:

(1)Mode memory function: if the flashlight is turned on more than 3seconds ,current mode can be memoried.Turn it off and then turn it on ,still the original mode.
if less than 3seconds ,Turn it off and then turn it on ,it goes into the next mode.

(2)Low voltage protection function: when the voltage of battery is 2.9-3.1V,the flashlight flashes 2times/sec with low brightness,it’s a low voltage alarm.

(3)Battery reverse protection:if your battery is reversed,dont worry ,no any problem will happen.

General	Brand: Convoy Model: S8 Flashlight Type: Handheld Flashlight size: Small Emitters: C-ree 7135 x 3 XM – L2 Emitters Quantity: 1 Lumens Range: 500 Luminous Flux: 500Lm Feature: Lightweight,Reverse Polarity Protection,Stainless Steel Bezel,Tail Stand,Waterproof Switch Location: Tail Cap Light Modes: High,Low,Mid,SOS,Strobe Mode: 2 Kind of Mode (1. 3 Modes: Low 5%; Mid 40%; High 100%; 2. 5 Modes: Low 5%; Mid 40%; High 100%; Strobe; SOS) Battery Type: 18650 Battery Quantity: 1 x 18650 battery (not included) Battery Included or Not: No Mode Memory: Yes Waterproof Standard: IPX-8 Standard Waterproof LED Lifespan: 50000 hours
Product Details	Power Source: Battery Working Voltage: 3-4.2V Reflector: Aluminum Textured Orange Peel Reflector Lens: Glass Lens Body Material: Aluminium Alloy Flashlight Processing Technology: Aerospace Grade Aluminum Body with Anti Scratching Type III Hard Anodization
Runtime	High Mode: 2.5 hours
