Convoy M1 XML2 1000 Lumen -

Convoy M1 XML2 là 1 đèn pin tác chiến cỡ nhỏ, đèn được trang bị chip Cree XML2 cho độ sáng lên đến 1000 Lumen.

Thông Số Kỹ Thuật Convoy M1 XML2

PARAMETER

Material: Aluminum Alloy

Low voltage warning: Yes

Reverse polarity protection: Yes

Lens type: Glass

Reflector: Orange peel

Mode memory: Yes

Tailstand: Yes

Battery included: No

Required battery type: 18650 lithium (protected or unprotected)

Required battery quantity: 1pcs

Diameter(Head/Body/Tail): 35.6 / 24.9 / 26.8 mm

Length: 133.6 mm

Weight: 110g

Quick Details

Flashlight Type: EDC Flashlight

Place of Origin: Guangdong, China

Brand Name: Convoy

Model Number: M1 / SR-FL010

Battery Type: 1×18650

Usage: Emergency

Power Source: Rechargeable Battery

Lighting Period (h): 4

Certification:ce, FCC, RoHS

IP Rating: IP54

Lamp Body Material: Aluminum Alloy

Warranty(Year): 1-year

Light Source: LED

Brand: Convoy

Mode: M1

Emitters: C-ree XML2

Emitters Quantity: 1

Feature: Lightweight

Switch Location: Tail Cap

Material: Aluminum Alloy

Low voltage warning: Yes

Reverse polarity protection: Yes

Reflector: Orange peel

Packaging & Delivery

Selling Units: Single item

Single package size: 17.5X6X6 cm

Single gross weight: 0.200 kg

Package Type:: Package Contents:
* 1 x LED Flashlight
* 1 x white box package

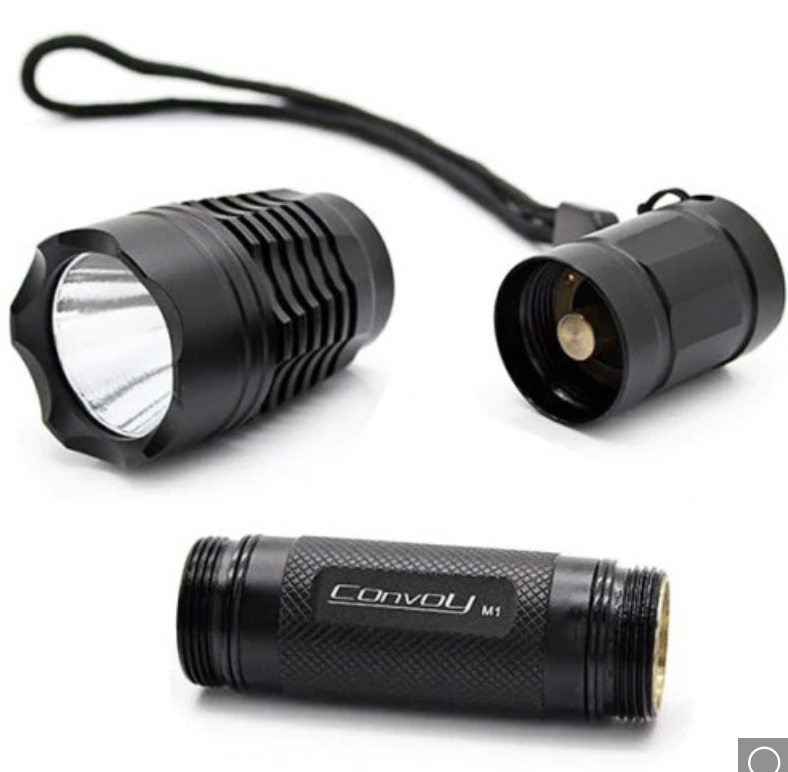

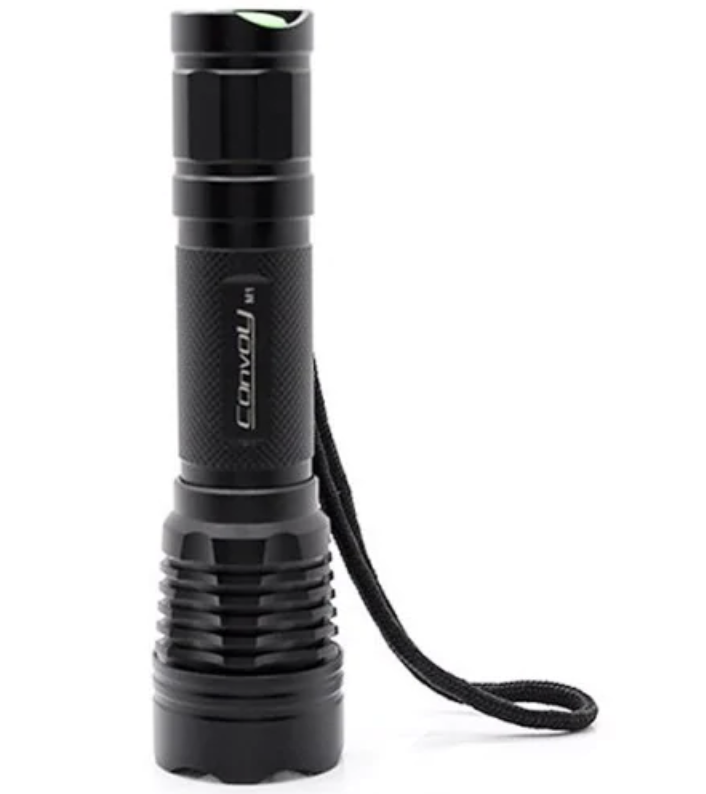

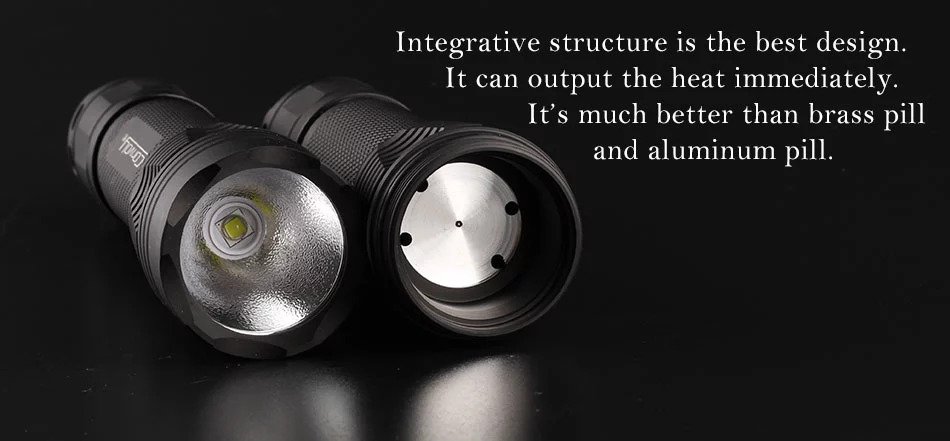

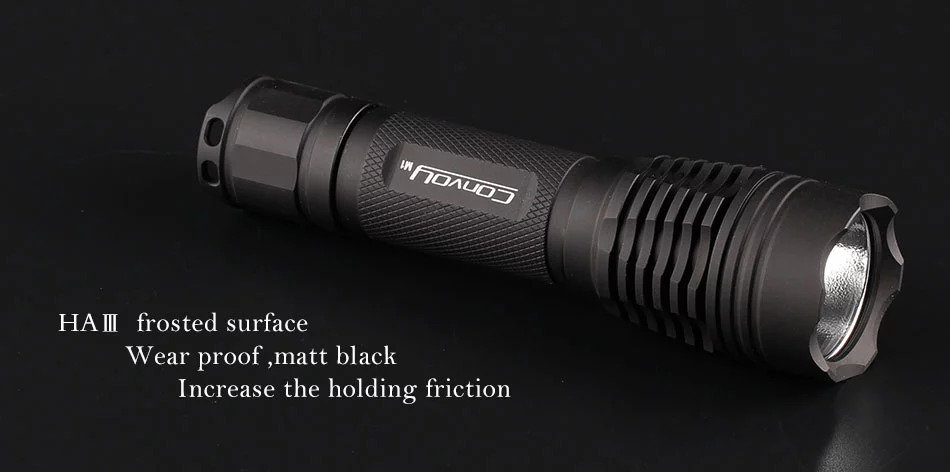

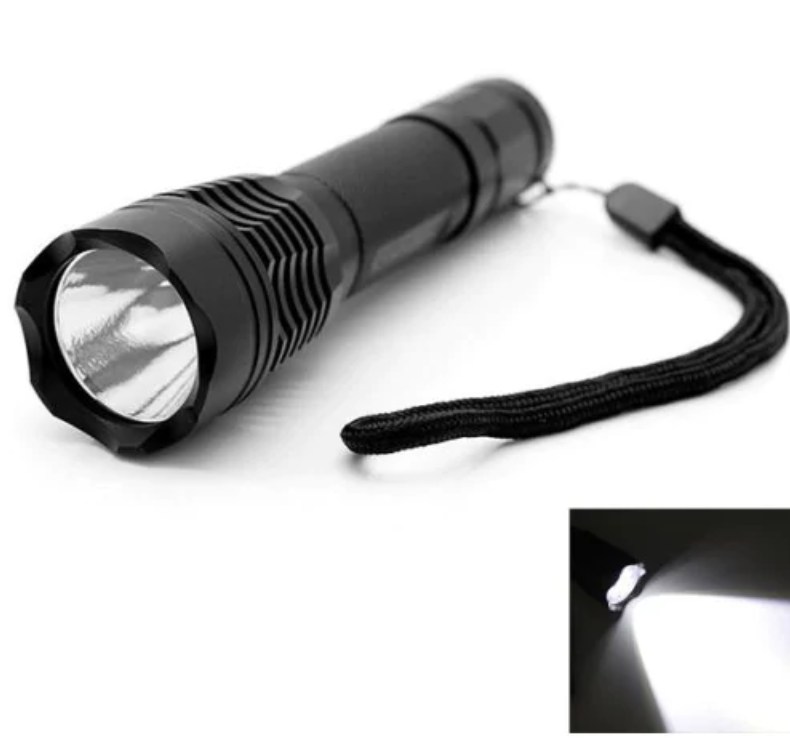

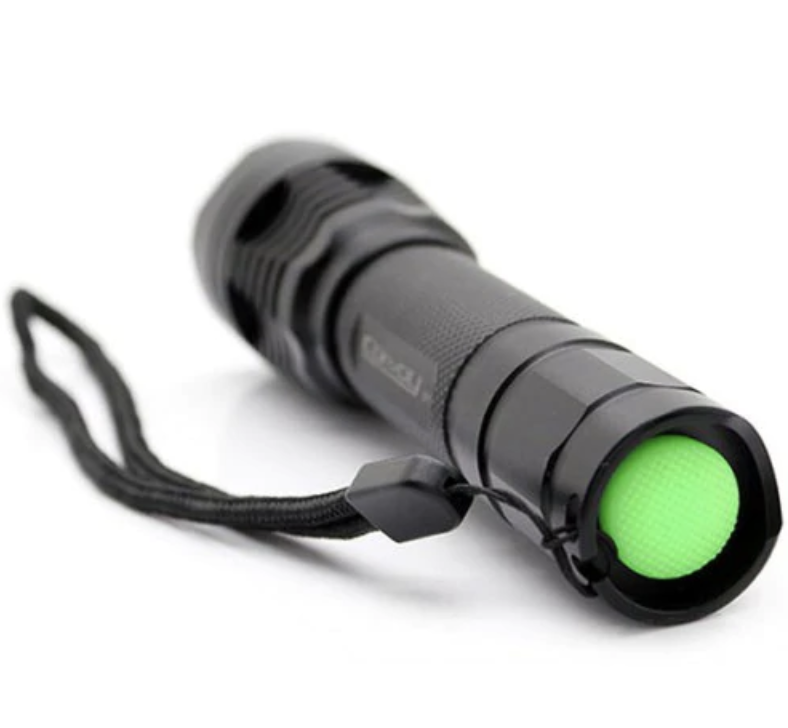

Picture Example:

Convoy M1 XML2 LED Powerful EDC Flashlight LED Tactical Torch with 2-Group 3/5-Mode LED Flashlight

How to change the mode group:
choose the low mode ,wait about 5 seconds ,when you see flashing ,turn off your flashlight.then turn it on , you can switch to 3mode group or 5mode group.

Modes customization:

Default mode 2groups

Group 1 (3-Mode): 5% > 40% > 100%; Group 2 (5-Mode): 5% > 40% > 100%> Strobe> SOS

You can select other modes,there are several kinds of choice(only one group):

(mode option 1)5%low—30%mid—100%high—SOS—strobe

(mode option 2)5%low—30%mid—100%high

(mode option 3)10%low—100%high

(mode option 4)10%low—100%high–strobe

Flashlight protection function explanation:

(1)Mode memory function: if the flashlight is turned on more than 3seconds ,current mode can be memoried.Turn it off and then turn it on ,still the original mode.
if less than 3seconds ,Turn it off and then turn it on ,it goes into the next mode.

(2)Low voltage protection function: when the voltage of battery is 2.9-3.1V,the flashlight flashes 2times/sec with low brightness,it’s a low voltage alarm.

(3)Battery reverse protection:if your battery is reversed,dont worry ,no any problem will happen.
